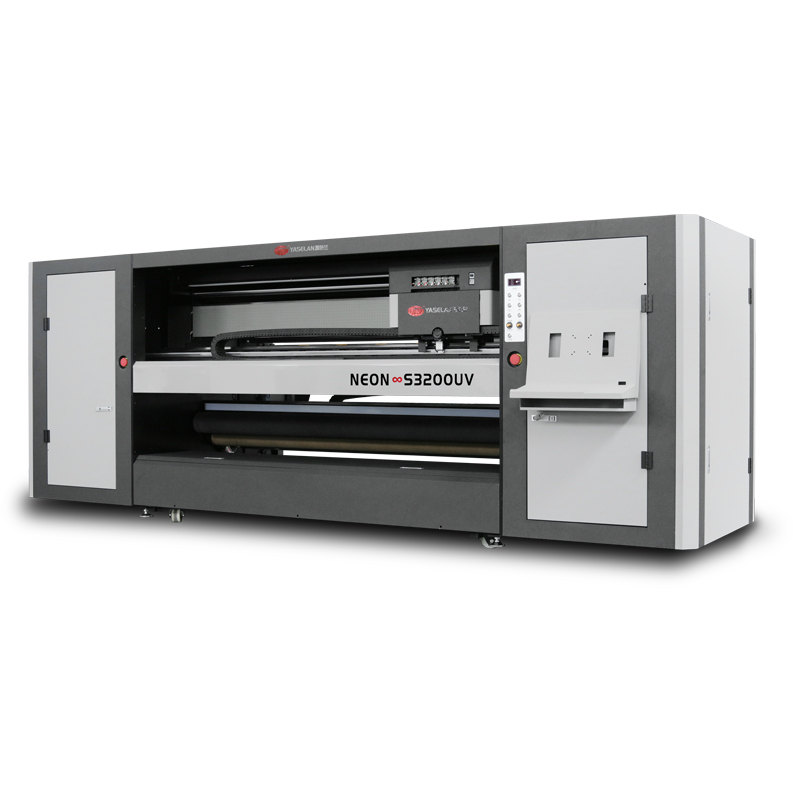

NEON-S3200UV

short description:

Double-sided Asynchronous UV Inkjet Printer NEON-S3200UV double-sided Inkjet Printer adopts the mechanical structure of asynchronous movement of two carriages, we have the patent of feeding and take up structure, which can realize the materials’ both sides printing asynchronously, the pattern alignment is very accurate so the production of high-quality light box is easily completed. Our double-sided UV printer can get good printing results and the operation is simple and convenient as well. The patent automatic cleaning system can continue to complete high-quality jobs through only a few steps then can easily complete the printing operation.

Send email to us

Product Detail

Product Tags

Features

Diverse Printheads Permutation Modes
CMYK/CMYK LC LM Support 6 colors custom solution

Machine Features
1 It's equipped with two carriages of staggered row industrial Konica printhead KM1024i 13pl.
2 The image size parameters can be adjusted freely according to the design requirements. Achieve a variety
of custom application solutions, such as same image same color, same image different color, different image
different color.
3 Two carriages asynchronously print and automatically adjust the distance between the printing media.
Support printing up to ≦2mm soft roll to roll media.
4 Dual constant temperature water-cooled variable frequency air suction platform, synchronously cools the
excess temperature on the surface of printing media to ensure the flatness of printing media.

Product Advantages

Intelligent differential pressure negative pressure ink supply system

Intelligent double negative pressure system, automatically adjust the pressure difference, provide more stable ink supply, to ensure the stability of continuous operation of the whole printer。

Intelligent nozzle moisturizing device

Optional nozzle automatic scraping ink, automatic cleaning device. Easy to realize the nozzle maintenance and keep hands not to touch ink.

Intelligent constant temperature water-cooled frequency conversion adsorption platform.

The five-way water circulation system maximizes the efficiency of constant temperature cooling of the platform, effectively prevents the deformation caused by high temperature in the printing process of soft materials, and ensures the stability of continuous operation of the whole Printer during printing.

Application

Technical Parameters

Printer Model		NEON-S3200UV
Printhead		KM1024i
Printing Speed	Sketch mode	4pass	CMYK (8 Head)	35㎡/h	CMYK (16 Head)	70㎡/h
	Production Mode	6pass		25㎡/h		50㎡/h
	High Resolution Mode	8pass		18㎡/h		35㎡/h
Ink	Type	Imported environment-friendly UV ink (Soft/Neutral)
	Color	M /Y /C /K /LM /LC
Media Max Diameter		360mm
Printing Width		3200mm
Printing Thickness		≦2mm
RIP Software		PHOTOPRINT
Image Format		TIFF /JPG /EPS /PDF
Data Transfer		USB3.0
OS Required		Windows7/10 64 bits (Flagship/Professional Version)
Computer Required		Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G
Drying		LED-UV lamp curing
Moisture control		Patented automatic ink pressing moisturizing cleaning system
Media Type		All UV flex banner, coated banner, reflective transfer film, back interlining cloth , PE light box panel
Maximum Power		7KW (Including cooling system power 2KW)
Operation Environment		Humidity: 40%-70% Temperature: 20-30℃
Power Supply		AC220V±10% 50HZ
Operation Air Pressure		0.6MPA
N.W		4000kg
Printer Size		LWH: 583520152450mm
Package Size		LWH: 600020002250mm
