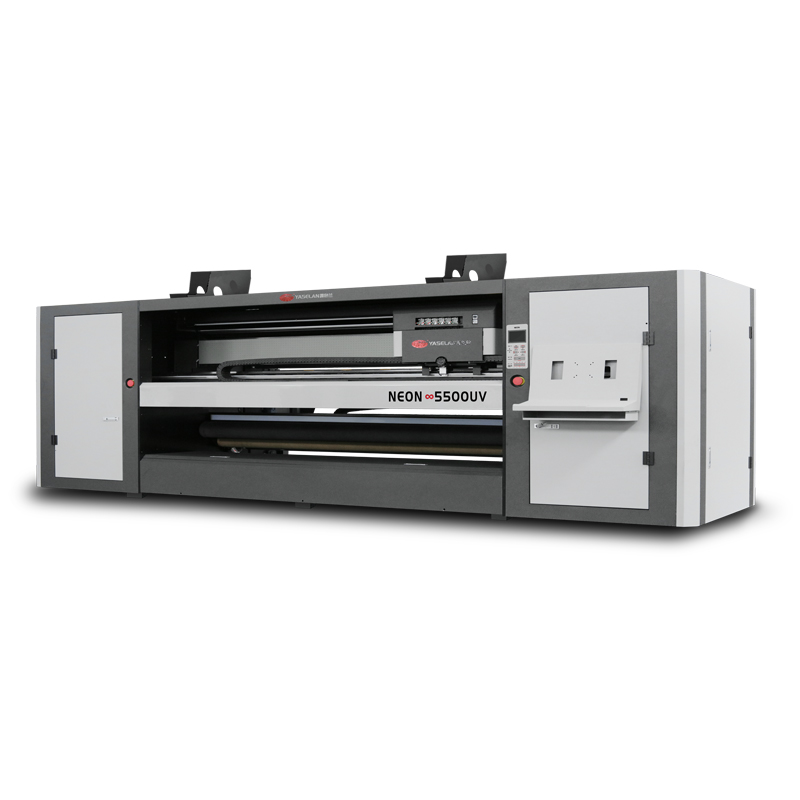

NEON-5500UV
Features
Diverse Printheads Permutation Modes
CMYK/CMYK LC LM Support 6 colors custom solution
Machine Features
1 It's equipped with two carriages of staggered row industrial Konica printhead KM1024i 13pl.
2 The image size parameters can be adjusted freely according to the design requirements. Achieve a variety
of custom application solutions, such as same image same color, same image different color, different image
different color.
3 Two carriages asynchronously print and automatically adjust the distance between the printing media.
Support printing up to ≦2mm soft roll to roll media.
4 Dual constant temperature water-cooled variable frequency air suction platform, synchronously cools the
excess temperature on the surface of printing media to ensure the flatness of printing media.
Product Advantages
Intelligent differential pressure negative pressure ink supply system
Intelligent double negative pressure system, automatically adjust the pressure difference, provide more stable ink supply, to ensure the stability of continuous operation of the whole printer.
Intelligent nozzle moisturizing device
Optional nozzle automatic scraping ink, automatic cleaning device. Easy to realize the nozzle maintenance and keep hands not to touch ink.
Intelligent constant temperature water-cooled frequency conversion adsorption platform.
It is suitable for soft materials without wrinkle, no deviation, to ensure the double printing alignment accuracy, the precision of the machine continuous operation platform is maintained 0.1mm, 4 pounds of text is clearer.
Application
Technical Parameters
| Printer Model | NEON-5500UV | |||||||
| Printhead | KM1024i(8-36H YMCK LC LM) | |||||||
|
Printing Speed |
Sketch mode | 4pass | one
group |
30㎡/h | two
group |
60㎡/h | three
group |
90㎡/h |
| Production Mode | 6pass | 21㎡/h | 42㎡/h | 65㎡/h | ||||
| High Resolution Mode | 8pass | 15㎡/h | 30㎡/h | 45㎡/h | ||||
|
Ink |
Type | Imported environment-friendly UV ink (Soft/Neutral) | ||||||
| Color | M /Y /C /K /LM /LC | |||||||
| Media Max Diameter | 350mm | |||||||
| Printing Width | 5500mm | |||||||
| Printing Thickness | ≦2mm | |||||||
| RIP Software | PHOTOPRINT | |||||||
| Image Format | TIFF /JPG /EPS /PDF | |||||||
| OS Required | Windows7/10 64 bits (Flagship/Professional Version) | |||||||
| Data Transfer | TCP /IP network interface /USB | |||||||
| Drying | LED-UV lamp curing | |||||||
| Moisture control | Patented automatic ink pressing moisturizing cleaning system | |||||||
| Media Type | All UV flex banner, coated banner, reflective transfer film, back interlining cloth , PE light box panel | |||||||
| Maximum Power | 9KW (Including cooling system power 2KW) | |||||||
| Operation Environment | Humidity: 40%-70% Temperature: 20-30℃ | |||||||
| Power Supply | AC220V±10% 50HZ | |||||||
| Operation Air Pressure | 0.6MPA | |||||||
| N.W | 13500kg | |||||||
| Printer Size | L*W*H: 9385*2615*2817mm | |||||||
| Package Size | L*W*H: 9470*2200*2500mm | |||||||
| Computer Required | Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G | |||||||
