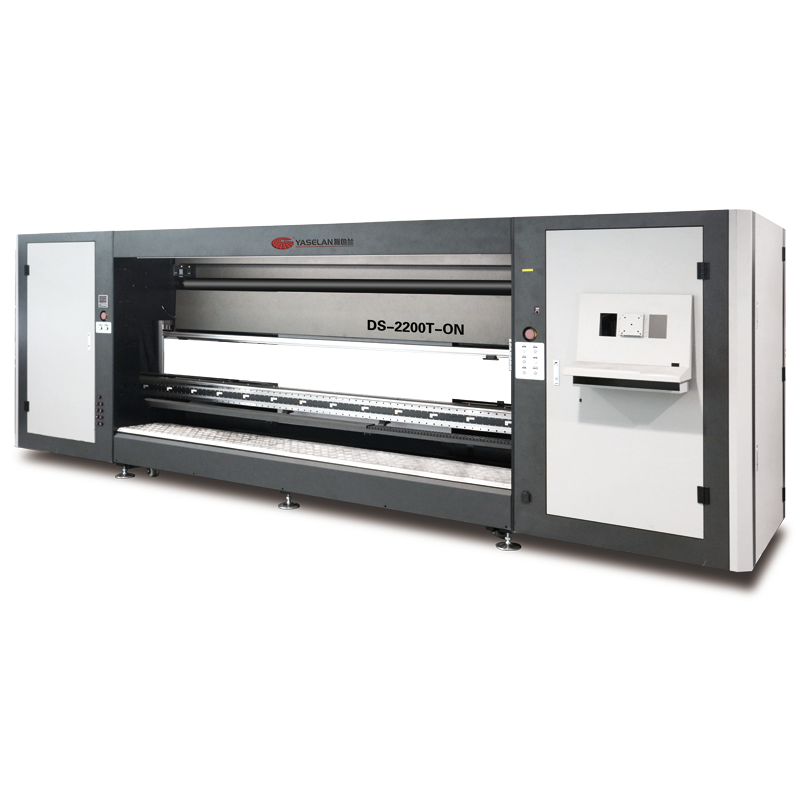

DS-2200T ON (Integrated with Heater Machine)
Features
Diverse Printheads Permutation Modes
CMYK/CMYK LC LM Support 6 colors custom solution
Machine Features

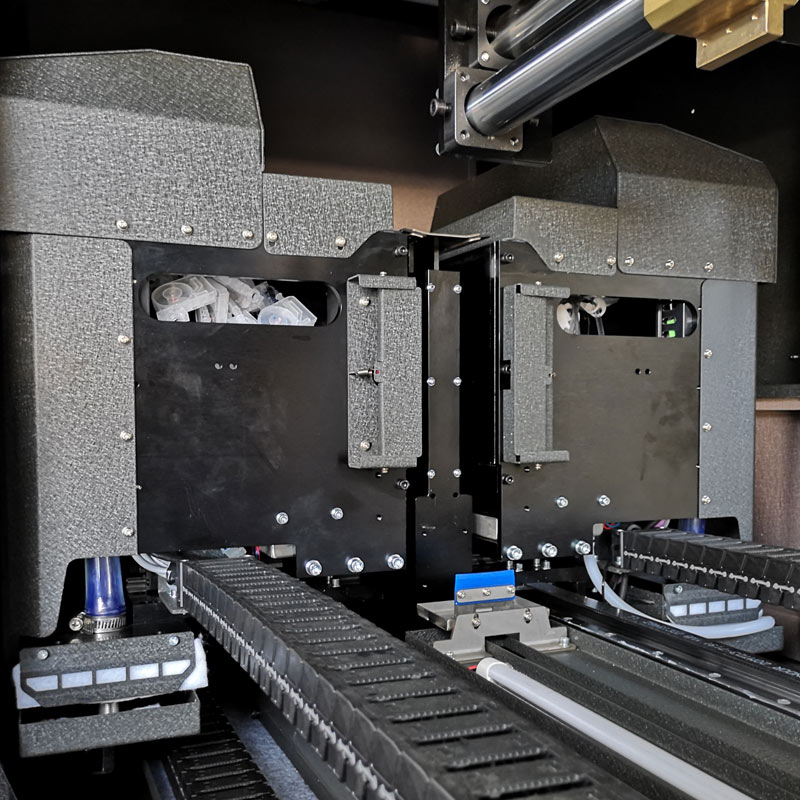

1 It's equipped with two carriages of staggered row industrial Konica printhead KM1024i 13pl.
2 The image size parameters can be adjusted freely according to the design requirements. Achieve a variety
of custom application solutions, such as same image same color, same image different color, different image
different color.

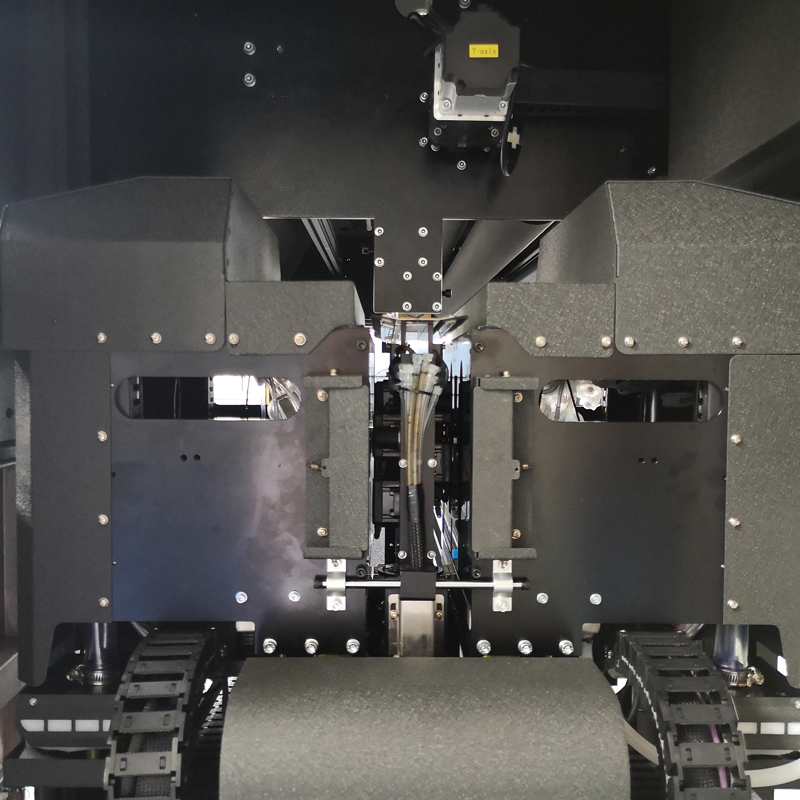

3 Two carriages asynchronously print and automatically adjust the distance between the printing media.
Support printing up to ≦2mm soft roll to roll media.
4 Dual constant temperature water-cooled variable frequency air suction platform, synchronously cools the
excess temperature on the surface of printing media to ensure the flatness of printing media.
Product Advantages

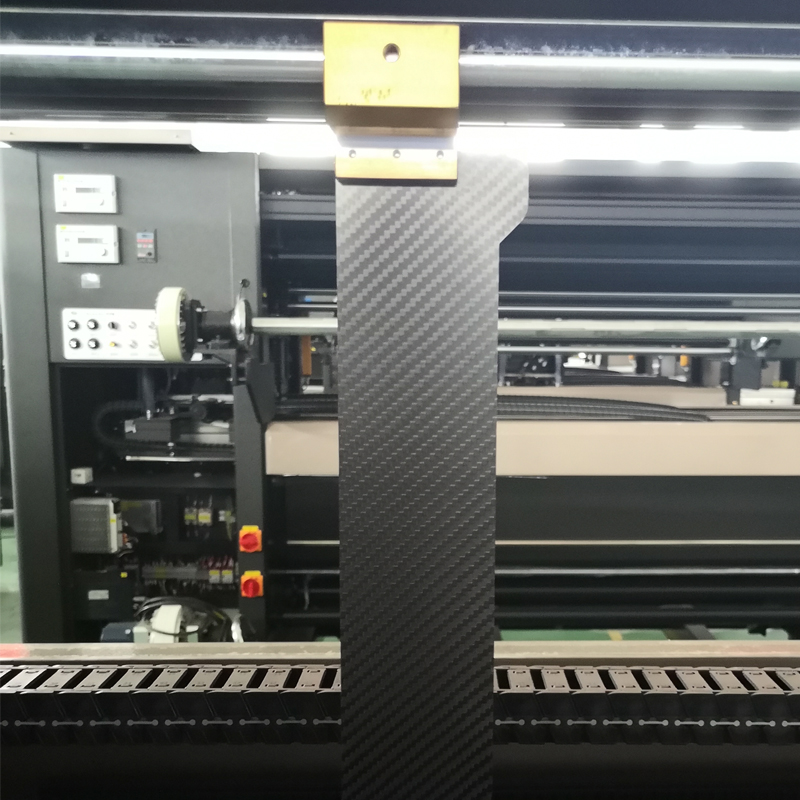

Clamp design
Some printing materials have the problem of edge rough or curling. When printing these materials, it is necessary to install the clamp device. Adapt to more materials printing.
Automatic moisturizing cleaning device
Automatic nozzle ink press and cleaning device, save time. When the device is out of use, the nozzle moisturizes reliably.
Crashproof Devices
Double directions, total 4pcs crashproof devices for 2 carriages,well protect the nozzles.
Application
Technical Parameters
| Printer Model | DS-2200T-ON | ||
| Printhead | Kyocera KJ4B-0300/KJ4B-0600(4-8H) | ||
|
Printing Speed |
Printing Mode | High Resolution Mode | Printing Speed |
| 4pass | 635*2400 | 50㎡/h | |
| 3pass | 635*1800 | 75㎡/h | |
| 2pass | 635*1200 | 110㎡/h | |
|
Ink |
Type | Reactive ink , Acidic ink, Disperse direct printing ink | |
| Color | M / Y / C / K / LM / LC (O, B optional,FM,FY) | ||
| Media Max Diameter | 350mm | ||
| Printing Width | 2150mm | ||
| Printing Thickness | ≦3mm | ||
| RIP Software | Maintop/PrintFactory/Neostampa | ||
| Image Format | TIFF / JPG / EPS / PDF | ||
| Data Transfer | TCP/IP network interface /USB | ||
| OS Required | Windows7/10 64 bits (Flagship/Professional Version) | ||
| Computer Required | Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G | ||
| Drying System | Synchronous drying before and after printing, the temperature can be adjusted according to different fabrics. | ||
| Ink Purge Control System | ink scraping and moisturizing system by patent | ||
| Media Type | Textile fabrics of animal and plant proteins, Chemical fiber, Banner cloth, light box cloth etc | ||
| Maximum Power | 7KW (Including heating system power 5KW) | ||
| Operation Environment | Humidity: 40%-70% Temperature: 20-30℃ | ||
| Power Supply | AC220V±10% 50HZ | ||
| N.W | 2450kg | ||
| Printer Size | L*W*H: 4950*1835*2023mm | ||
| Package Size | L*W*H: 5050*1935*2123mm | ||
