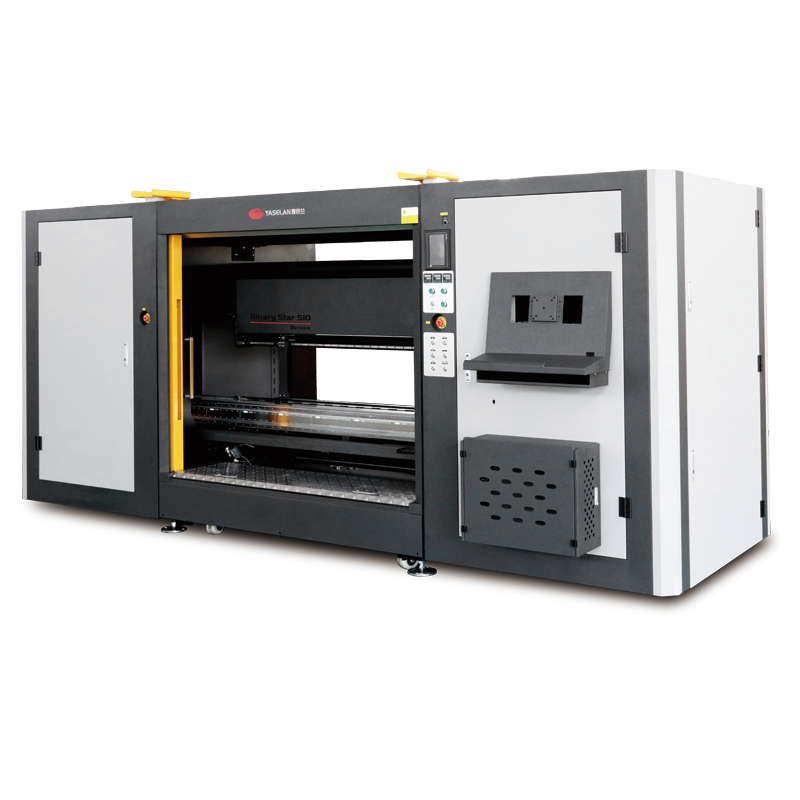

Binary Star S10

short description:

Binary Star S10 double-sided Inkjet Printer adopts the mechanical structure of synchronous vertical parallel movement of two carriages, we have the patent of feeding and take up structure, which can realize the materials’ both sides printing at the same time, the pattern alignment is very accurate so the production of high-quality orders is easily completed. The biggest advantage of this double-sided printer is the customization of differentiated programs, which can perfectly realize the application of different programs such as “ Same image same color; Same image different color; Different image different color ”. To achieve the best color saturation and finished product effect of the materials through the control of ink volume on both sides. Our double-sided printer can get good printing results and the operation is simple and convenient as well. The patent automatic cleaning system can continue to complete high-quality jobs through only a few steps then can easily complete the printing operation.

Send email to us

Product Detail

Product Tags

Features

Diverse Printheads Arrangement Modes

C M Y K /C M Y K LC LM O B Support 8 spot colors custom solution

Machine Features

1.Double-sided printheads arrangement Ricoh (GEN6) , Kyocera KJ4B-0300, or Epson printhead (i3200-A1). Support high speed printing.

2.The image size parameters can be adjusted freely according to the design

requirements. Achieve a variety of custom application solutions, such as same image same color, same image different color, different image different color.

3.Automatic moisturizing ink purge control system, X-Y-Z axles synchronized driving.

The automatic ink cleaning system can effectively solve the splashed ink generated during printing.

4.Two carriages synchronously print and automatically adjust the distance between the printing media. Support printing up to 2mm soft roll to roll media.

Application

Technical Parameters

Printer Model		S10
Printhead		Kyocera KJ4B-0300 8H
Printing Speed	Printing Mode	High Resolution Mode		Printing Speed
	4pass	635x1200		20㎡/h
	3pass	635x900		30㎡/h
	2pass	635x600		40㎡/h
Printhead		Ricoh GEN6 8H		Epson i3200-A1 8H
Printing Speed	Sketch Mode	635x600	40㎡/h	635x600	50㎡/h
	Production Mode	635x900	25㎡/h	635x900	40㎡/h
	High Resolution Mode	635x1200	20㎡/h	635x1200	30㎡/h
Ink	Type	Special: Active ink, Acidic ink, Disperse direct printing ink,Pigment ink
	Color	M / Y / C / K / LM / LC (O, B etc optional)
Media Max Diameter		350mm(Customizable）
Printing Width		1600mm
Printing Thickness		≤3mm
RIP Software		Maintop/ PrintFactory/ NeoStampa
Image Format		TIFF / JPG / EPS / PDF
Data Transfer		TCP/IP network interface /USB
OS Required		Windows7/10 64 bits (Flagship/Professional Version)
Computer Required		Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G
Drying System		Synchronous drying before and after printing, the temperature can be adjusted according to 0 different fabrics.
Ink Purge Control System		Automatic printhead cleaning, ink scraping and moisturizing system by patent
Media Type		Textile fabrics for animal and plant proteins, chemical fiber,cotton,silk etc
Maximum Power		22KW (Including heating system power 20KW)
Operation Environment		Humidity: 40%-70% Temperature: 20-30℃
Power Supply		AC380V±10%
N.W		1400kg
Printer Size		LWH: 448521602025mm
Package Size		LWH: 476021002370mm
